The Complete Guide to SolidWorks MotionManager

Bringing Designs to Life

Picture this: You’re an engineer working on a revolutionary new automotive suspension system, but your stakeholders struggle to understand how the complex linkages will move in real-world conditions1. Or perhaps you’re developing a medical device where precise movement simulation could mean the difference between regulatory approval and costly redesigns12. This is where SolidWorks MotionManager transforms static CAD models into dynamic, living demonstrations that tell the complete story of how your designs will perform in the real world119.

SolidWorks MotionManager isn’t just another CAD feature—it’s a bridge between imagination and reality, allowing engineers to visualize, analyze, and validate their designs before a single physical prototype is built2 4. Whether you’re creating stunning marketing animations or conducting rigorous engineering analysis, MotionManager provides the tools to bring your mechanical systems to life with unprecedented clarity and precision119.

The Evolution of Motion Simulation: From Static Models to Dynamic Reality

In the early days of mechanical design, engineers relied on hand-drawn sketches and physical prototypes to understand how their mechanisms would function21. The introduction of CAD software revolutionized this process, but even sophisticated 3D models remained static representations—impressive to look at, but limited in their ability to demonstrate actual functionality2 4.

MotionManager emerged from the merger of two powerful technologies: SolidWorks Animator and COSMOSMotion, creating a unified interface that could handle everything from simple animations to complex motion analysis14. This integration represented a fundamental shift in how engineers approach design validation, moving from expensive physical testing to virtual simulation that could predict real-world behavior with remarkable accuracy10 12.

The current MotionManager interface was developed to provide a standard approach to controlling all three motion study types used for creating animations and motion analysis1. This consolidation brought together Dynamic Assembly Motion, Physical Simulation, Animation, and SolidWorks Motion into a single, intuitive platform that even newcomers could master19.

Understanding the Three Pillars of Motion Studies

Comparison of SolidWorks MotionManager Study Types and Their Capabilities

At the heart of MotionManager lie three distinct motion study types, each tailored for specific applications and levels of complexity1. Understanding when and how to use each type is crucial for maximizing the effectiveness of your motion simulations2 15.

Animation: The Art of Visual Communication

Animation studies represent the most accessible entry point into motion simulation, requiring only core SolidWorks and focusing purely on visual representation12. In animation mode, physics takes a backseat to creativity—components can move through each other, float in space, and follow impossible trajectories that would never occur in the real world1. This freedom makes animation perfect for marketing videos, product demonstrations, and presentations where visual impact matters more than technical accuracy19 21.

The beauty of animation lies in its simplicity6. Components move either by setting their position at specified times or through the interaction of other components via SolidWorks mates and motion drivers1. With no physics involved in the solution, components have no mass, momentum, friction, or contact—they simply follow the paths you define110.

Basic Motion: Bridging Reality and Simplicity

Basic Motion represents the middle ground between simple animation and complex analysis115. This motion study type incorporates physics-based simulation while remaining accessible to users without SolidWorks Premium1. It can utilize many of the same inputs and contacts between components as full Motion Analysis but without the comprehensive analysis capabilities112.

Basic Motion excels in scenarios where the physics of the problem must be solved for realistic animation, particularly in dynamic systems where mate relationships alone cannot capture the true behavior115. Manufacturing applications often benefit from Basic Motion studies, where conveyor systems, robotic arms, and production line equipment need to demonstrate realistic movement patterns while maintaining reasonable calculation times15 18.

Motion Analysis: Engineering Precision at Its Peak

Motion Analysis represents the pinnacle of MotionManager capabilities, available with SolidWorks Premium and providing complete access to gravity, contact sets, loads, dampers, springs, and motors115. This is where engineering meets precision, allowing designers to determine power requirements, acceleration profiles, and force distributions with confidence10 12.

The true power of Motion Analysis becomes evident in mission-critical applications12. Automotive engineers use it to analyze suspension systems under various load conditions, aerospace engineers validate satellite deployment mechanisms, and medical device manufacturers ensure prosthetic joints can withstand years of use12 20. The ability to seamlessly transfer loads from Motion Analysis to SolidWorks Simulation creates a complete design validation workflow that can identify potential failures before they occur in the real world12 15.

The MotionManager Journey: A Step-by-Step Workflow

SolidWorks MotionManager Workflow: Step-by-Step Process Guide

Creating effective motion studies follows a systematic workflow that transforms static assemblies into dynamic demonstrations2 9. This process, refined through years of engineering practice, ensures consistent results while maximizing efficiency1.

Motionmanager Workflow Guide

Step	Phase	Task	Description	Time Estimate
1	Setup	Open SolidWorks Assembly	Start with properly mated assembly with defined relationships	2-5 min
2	Setup	Enable MotionManager Interface	Access through Tools > Customize or View > Toolbars	1-2 min
3	Planning	Choose Motion Study Type	Select Animation, Basic Motion, or Motion Analysis based on needs	2-3 min
4	Planning	Set Timeline Duration	Set total time length for the animation sequence	1 min
5	Creation	Define Component Motion	Specify how components will move through space and time	10-30 min
6	Creation	Add Motors/Drivers	Add rotary motors, linear motors, or other motion drivers	5-15 min
7	Animation	Set Keyframes & Positions	Create key positions at specific times along the timeline	15-45 min
8	Animation	Configure Camera Views	Define camera angles and viewpoints for best presentation	5-10 min
9	Output	Calculate Motion Study	Run the simulation to generate the motion sequence	5-20 min
10	Output	Export to Video/Images	Save as AVI, image series, or other formats for sharing	2-5 min

The journey begins with proper assembly preparation—ensuring all components are correctly mated and the assembly demonstrates the intended mobility3 10. Without proper mates, even the most sophisticated motion study will fail to capture realistic behavior14 15. The MotionManager interface must then be activated, typically through the Tools menu or toolbar customization, revealing the timeline-based controls that form the foundation of all motion studies14.

Solidworks MotionManager interface showing timeline and assembly treecati

Selecting the appropriate motion study type represents a critical decision point that influences every subsequent step115. Animation serves marketing and presentation needs, Basic Motion handles dynamic systems requiring physics, and Motion Analysis provides comprehensive engineering validation12. Setting the timeline duration establishes the temporal framework for the entire simulation, determining how much real-world time the animation will represent717.

The creation phase involves defining how components will move through space and time, often requiring the addition of motors or drivers to provide the energy that powers the mechanism118. Rotary motors drive rotating assemblies, linear motors provide translational motion, and servo motors offer precise control over displacement profiles122. The complexity of this phase varies dramatically depending on the mechanism—simple mechanisms might require only a single motor, while complex systems may need multiple coordinated drivers15 18.

Animation refinement focuses on creating compelling visual narratives through keyframe positioning and camera control19. Keyframes define specific component positions at particular times, with MotionManager automatically interpolating smooth motion between these points2 4. Camera positioning and movement can transform a technical demonstration into an engaging presentation that effectively communicates design intent117.

The final phases involve calculation and output17. Modern motion studies can require significant computational resources, particularly for complex assemblies with multiple contacts and physics-based interactions15 18. Export options include AVI video files, image sequences, and integration with PhotoView 360 for photorealistic rendering that rivals professional animation studios119.

Real-World Applications: Industry Success Stories

Distribution of Motion Study Types Across Industries

The versatility of MotionManager becomes evident when examining its applications across diverse industries12 19. Each sector leverages different aspects of the software to solve unique challenges, from reducing development costs to ensuring regulatory compliance20 21.

Industry Applications

Industry	Common Applications	Key Benefits	Typical Study Type
Automotive	“Suspension Analysis
Engine Components
Crash Simulations
Assembly Processes”	“Reduced Physical Testing
Early Problem Detection
Design Optimization
Regulatory Compliance”	Motion Analysis
Aerospace	“Landing Gear
Control Surfaces
Satellite Deployment
Propulsion Systems”	“Mission Critical Validation
Weight Optimization
Reliability Analysis
Cost Reduction”	Motion Analysis
Manufacturing	“Conveyor Systems
Robotic Arms
Production Lines
Quality Control”	“Process Optimization
Training Materials
Troubleshooting Guides
Efficiency Improvement”	Basic Motion
Consumer Products	“Mechanism Function
Product Demos
Marketing Videos
User Instructions”	“Enhanced Marketing
User Understanding
Reduced Support Calls
Faster Time-to-Market”	Animation
Medical Devices	“Prosthetic Joints
Surgical Instruments
Implant Mechanics
Rehabiliation Devices”	“Safety Validation
Biocompatibility Testing
Patient-Specific Design
Regulatory Approval”	Motion Analysis
Robotics	“Joint Movement
Path Planning
Workspace Analysis
Tool Operations”	“Motion Verification
Collision Avoidance
Performance Optimization
Control System Design”	Motion Analysis

Automotive Excellence: Engineering Performance and Safety

The automotive industry represents one of the most demanding applications for motion simulation12 18. Engineers must validate suspension systems that will endure millions of cycles, optimize engine components for maximum efficiency, and simulate crash scenarios that could save lives10 20. Motion Analysis provides the precision required for these critical applications, enabling engineers to determine exact force distributions, power requirements, and failure modes12 15.

Suspension analysis exemplifies the power of virtual validation10 20. Engineers can simulate years of road conditions in hours of computation time, identifying potential failure points and optimizing component sizing before expensive physical testing begins12 18. The ability to vary parameters like spring rates, damping coefficients, and geometry enables rapid design iteration that would be prohibitively expensive using physical prototypes15 20.

Aerospace Innovation: Mission-Critical Reliability

Aerospace applications demand absolute reliability, making virtual validation essential for mission success12 20. Landing gear mechanisms must deploy flawlessly after years in space, control surfaces must respond precisely under extreme conditions, and satellite deployment systems get only one chance to work correctly10 12. Motion Analysis provides the confidence necessary for these high-stakes applications15 20.

The integration of motion simulation with stress analysis creates a comprehensive validation workflow that can predict component behavior under the extreme conditions encountered in aerospace applications12 15. Engineers can simulate the thermal cycling of space, the vibration of launch, and the precision requirements of orbital operations, all within the virtual environment10 20.

Manufacturing Efficiency: Optimizing Production Processes

Manufacturing applications often favor Basic Motion studies for their balance of realism and computational efficiency15 18. Production line optimization, robotic work cell design, and quality control system validation benefit from physics-based simulation without the computational overhead of full analysis119. The ability to visualize material flow, identify bottlenecks, and optimize cycle times directly impacts profitability15 21.

Industrial robot arm performing a scanning operation simulationmdpi

Training applications represent another significant benefit of motion simulation in manufacturing19 21. Complex assembly procedures, maintenance protocols, and safety systems can be demonstrated through interactive animations that improve knowledge retention and reduce training time21. The visual nature of these materials makes them particularly effective for international operations where language barriers might complicate traditional training methods19.

Consumer Products: Marketing and User Experience

Consumer product companies leverage animation studies for marketing and user education19 21. Product demonstrations that clearly show mechanism function, exploded views that illustrate assembly procedures, and marketing videos that highlight key features all benefit from MotionManager’s animation capabilities16. The ability to create compelling visual content directly from CAD data eliminates the need for expensive external animation services19.

Medical Devices: Precision and Validation

Medical device applications demand the highest levels of accuracy and regulatory compliance12. Motion Analysis enables engineers to validate prosthetic joints under realistic loading conditions, optimize surgical instrument kinematics, and demonstrate implant mechanics to regulatory authorities12 20. The ability to export detailed analysis results provides the documentation necessary for FDA approval and other regulatory processes15.

Robotics: Path Planning and Collision Avoidance

Robotics applications showcase the full spectrum of MotionManager capabilities12 20. Path planning requires precise kinematic analysis to ensure smooth, efficient motion, while collision avoidance demands accurate contact simulation15. The ability to validate robotic work cells before installation reduces commissioning time and prevents costly modifications12 18.

Mastering the Art: Best Practices and Advanced Techniques

Success with MotionManager requires understanding not just the software mechanics, but the underlying principles that govern effective motion simulation19. Experienced users develop workflows that maximize accuracy while minimizing computational overhead15 18.

Assembly Preparation: The Foundation of Success

Effective motion studies begin with proper assembly preparation3 10. Mates must accurately represent real-world constraints while providing the necessary degrees of freedom for the intended motion14 15. Over-constrained assemblies will prevent motion, while under-constrained assemblies may exhibit unrealistic behavior13. The key lies in finding the balance that captures essential physics while maintaining computational efficiency10 15.

Material property assignment becomes critical for Motion Analysis studies10 12. Accurate mass, inertia, and density values ensure realistic dynamic behavior, while contact properties affect collision and friction calculations15 18. SolidWorks automatically derives these properties from the CAD geometry and assigned materials, but validation against known values improves confidence in the results10 12.

Timeline Management: Orchestrating Complex Motion

Effective timeline management separates novice users from experts19. Strategic placement of keyframes creates smooth, realistic motion that effectively communicates design intent26. Too few keyframes result in jerky, unrealistic motion, while too many can create unnecessary complexity and longer calculation times19.

The Animation Wizard provides a valuable starting point for complex motion sequences14. Converting exploded views to key frame-based animations, incorporating physics-based simulations, and managing multiple motion elements becomes manageable with proper planning117. Advanced users often create multiple motion studies for different aspects of a design, combining them into comprehensive presentations69.

Optimization Strategies: Balancing Quality and Performance

Computational efficiency becomes increasingly important as assemblies grow in complexity15 18. Strategic suppression of non-essential components, simplified contact definitions, and appropriate study type selection can dramatically reduce calculation times without compromising accuracy110. Understanding when to use Animation versus Basic Motion versus Motion Analysis prevents over-engineering simple problems while ensuring adequate fidelity for critical applications115.

Output settings significantly impact both file size and visual quality119. Frame rate selection, compression options, and resolution settings must balance file size constraints with presentation requirements617. Professional presentations may require high-resolution, uncompressed output, while web-based sharing benefits from optimized compression19.

The Technical Foundation: Understanding Motion Types

Motion Type	Physical Laws	Component Interaction	Real-World Accuracy	Calculation Speed	Use Cases
Free Motion	None Applied	Independent Movement	Low	Very Fast	“Marketing Videos
Concept Presentations
Simple Demonstrations”	“Product floating in space
Components passing through each other
Arbitrary motion paths”
Kinematic Motion	Geometric Constraints	Mate-Controlled	Medium	Fast	“Assembly Instructions
Mechanism Function
Educational Content”	“Gear trains
Linkage mechanisms
Mate-driven assemblies”
Dynamic Motion	Physics-Based	Force & Contact Based	High	Slower	“Engineering Validation
Power Analysis
Collision Testing”	“Gravity simulations
Spring-damper systems
Collision analysis”

The theoretical foundation underlying MotionManager rests on three fundamental motion types, each representing different levels of physical realism110. Understanding these concepts enables informed decisions about study type selection and expected accuracy20.

Free Motion: Creative Freedom Without Constraints

Free motion exists only in the virtual world, where mathematical volumes have no physical boundaries or limitations1. Components can move through each other, accelerate instantly, and follow impossible trajectories110. This freedom enables creative presentations and marketing materials that prioritize visual impact over physical realism19 21.

The applications for free motion extend beyond simple marketing16. Concept presentations often benefit from impossible camera angles and component movements that clearly illustrate design intent19. Educational materials can use free motion to show internal mechanisms that would be impossible to film in reality21.

Kinematic Motion: Constraint-Based Reality

Kinematic motion represents the middle ground between creative freedom and physical accuracy110. Components move based on mate relationships and geometric constraints, following realistic paths while ignoring forces, masses, and energy120. This approach proves ideal for demonstrating mechanism function and assembly procedures10 21.

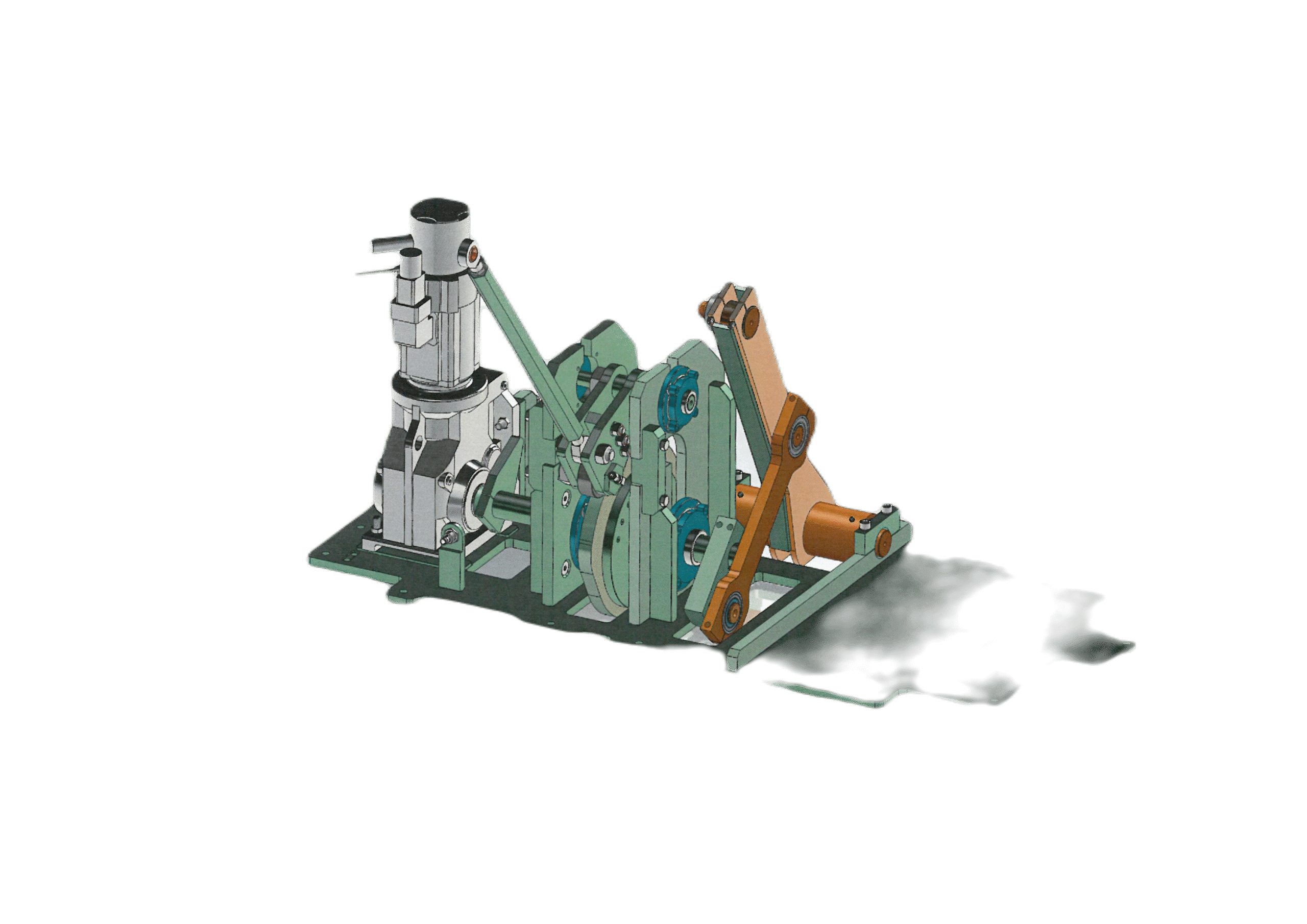

Gear trains, linkage mechanisms, and cam-follower systems benefit from kinematic simulation110. The motion appears realistic because it follows geometric constraints, but calculation times remain manageable because physics is simplified20. Educational applications particularly benefit from this approach, where understanding mechanism function matters more than precise force calculations21.

Dynamic Motion: Physics-Based Accuracy

Dynamic motion incorporates the full complexity of physics-based simulation110. Components interact through contact forces, respond to gravity and applied loads, and exhibit realistic energy transfer12 15. This approach provides the highest accuracy but requires the greatest computational resources18 20.

The applications for dynamic motion span engineering validation, collision analysis, and system optimization10 12. Understanding how components interact under realistic loading conditions enables confident design decisions and reduces the need for physical testing15 20. The ability to vary parameters and observe their effects provides insights that would be expensive or impossible to obtain through physical experimentation18.

The Future of Motion Simulation: Emerging Trends and Technologies

Motion simulation continues to evolve, driven by increasing computational power and advancing simulation techniques21 24. Virtual reality integration enables immersive design reviews where engineers can literally walk through their mechanisms21. Augmented reality overlays motion simulations onto physical prototypes, creating hybrid validation environments that combine virtual and physical testing21 24.

Artificial intelligence and machine learning are beginning to impact motion simulation workflows24. Automated optimization algorithms can explore design spaces more efficiently than manual iteration, while intelligent motion planning reduces the expertise required to create effective simulations24. These developments promise to make advanced motion simulation accessible to a broader range of engineers and designers21.

Real-time simulation capabilities continue to improve, enabling interactive design exploration where parameter changes instantly update motion behavior24. This immediate feedback accelerates the design process and enables more thorough exploration of design alternatives21. Cloud-based computing resources are making sophisticated motion analysis available to smaller organizations that might not have access to high-performance local hardware24.

Conclusion: Transforming Design Through Motion

SolidWorks MotionManager represents more than just software—it embodies a fundamental shift in how engineers approach design validation and communication119. By transforming static CAD models into dynamic demonstrations, MotionManager bridges the gap between imagination and reality, enabling confident design decisions and effective stakeholder communication2 21.

The three motion study types—Animation, Basic Motion, and Motion Analysis—provide options for every application, from simple marketing videos to complex engineering validation115. Understanding when and how to use each type, combined with proper workflow management and best practices, enables engineers to leverage this powerful tool effectively2 18.

As industries continue to demand shorter development cycles, reduced costs, and improved quality, virtual validation through motion simulation becomes increasingly essential12 21. The ability to identify problems early, optimize designs virtually, and communicate concepts effectively provides competitive advantages that directly impact business success19 24.

The future of motion simulation promises even greater capabilities, with emerging technologies making advanced analysis more accessible and powerful21 24. Engineers who master these tools today position themselves to lead tomorrow’s design innovations, armed with the ability to bring their most ambitious ideas to life through the power of virtual motion119.

Whether you’re designing the next generation of automotive systems, developing life-saving medical devices, or creating consumer products that delight users, MotionManager provides the tools to validate your designs, communicate your vision, and bring your mechanical systems to life with unprecedented clarity and confidence112 19. The journey from static models to dynamic reality begins with a single motion study—and the possibilities are limited only by your imagination121.
