A Complete Guide to Taming Complex CAD Models

Have you ever found yourself staring at the screen, waiting for your SolidWorks assembly to load, rebuild, or even just rotate? If so, you’re not alone 27. Large assemblies can be a significant challenge, often leading to frustration and decreased productivity 48. Picture this: it’s 4:30 PM on a Friday, you need to make a critical design change before the weekend, and your 3,000-component assembly decides to take a coffee break that lasts longer than your lunch hour 13. We’ve all been there, and the frustration is real.

But what exactly makes an assembly “large,” and how can we manage them effectively 18? In this comprehensive guide, I’ll take you on a journey through the world of large assemblies, exploring their characteristics, the performance issues they bring, and most importantly, the battle-tested strategies that professionals use to keep these digital beasts under control 57. By the end, you’ll have a complete arsenal of techniques to tackle even the most complex projects and keep your workflow smooth 22.

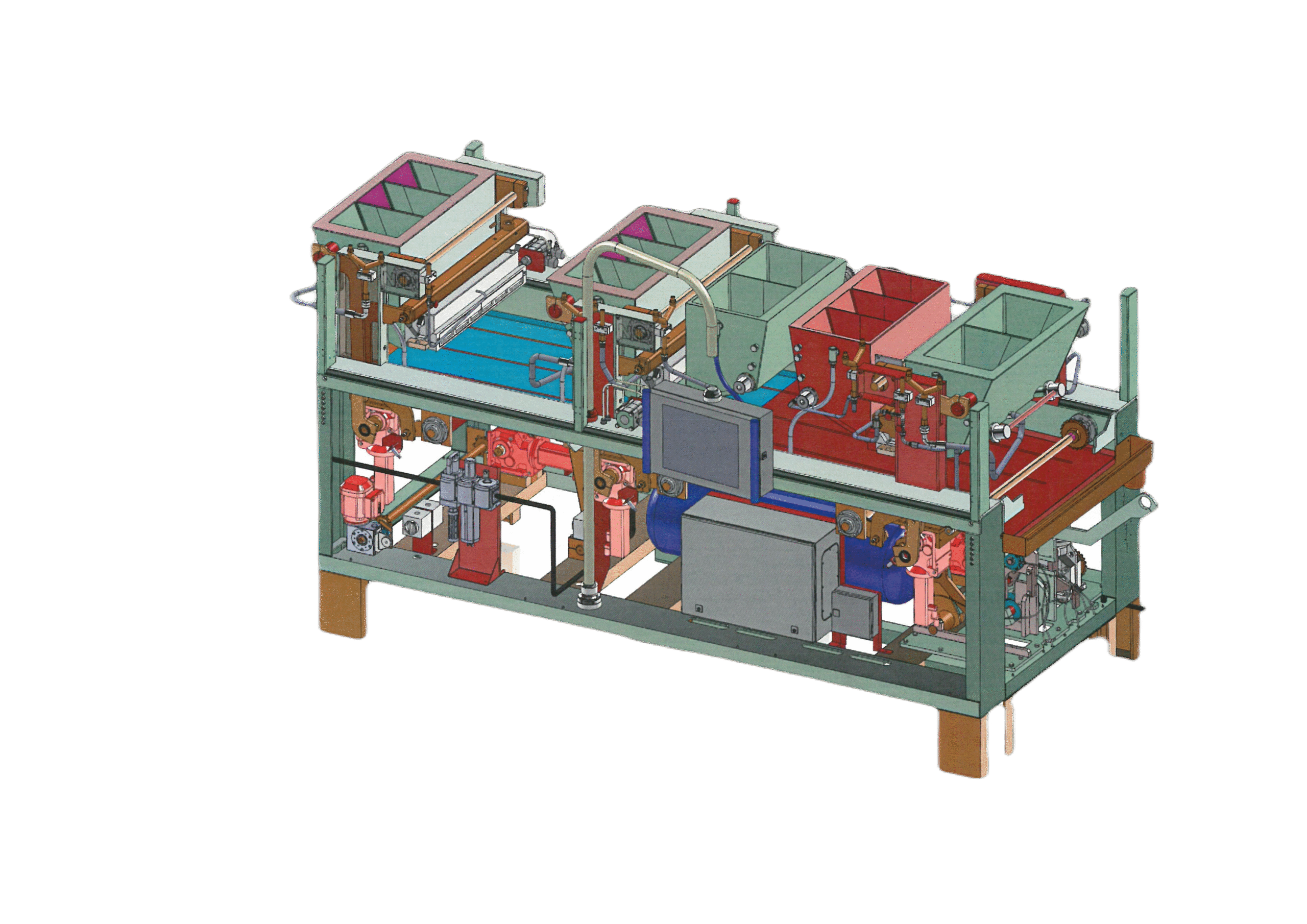

Understanding the Beast: What Defines a Large Assembly

Let’s start by demystifying what we actually mean by a “large assembly” 1. It’s a term that gets thrown around a lot in engineering circles, but it doesn’t necessarily mean an assembly with a massive number of components 18. Think of it like a traffic jam – sometimes a small road can become congested with just a few dozen cars if they’re all trying to navigate a complex intersection, while a well-designed highway can handle thousands 2.

A large assembly is fundamentally one that uses up all your system resources and hurts your productivity 18. These digital monsters can manifest their complexity through various characteristics that would make even seasoned CAD professionals break into a cold sweat 5.

The Seven Deadly Sins of Large Assemblies

Large assemblies can stem from various traits that create the perfect storm of performance issues 118:

Physical Enormity: Some assemblies are simply massive in scale – think of a complete aircraft or ship design where components span hundreds of meters 1721. These require careful layout and engineering precision to position components correctly, and your graphics card works overtime just to display them 22.

Component Overload: High component counts strain management, calculation, and memory resources 120. A modern automotive assembly might contain 15,000 to 30,000 individual parts, each with its own geometric data, material properties, and relationships 23.

Parametric Complexity: Assemblies with numerous parametric relationships and extensive mate networks tax your computer’s capabilities exponentially 2633. Every mate constraint creates mathematical relationships that must be solved simultaneously 1.

Diverse Component Arrays: Containing a vast array of different components slows down even the fastest machines 118. Mixing standard parts, custom components, imported geometries, and library items creates a computational nightmare 5.

Import Dependencies: Including imported data that needs to be located and loaded adds significant processing overhead 124. Legacy CAD data, vendor-supplied models, and cross-platform files often lack optimization 18.

Geometric Intricacy: Featuring geometric complexity that’s tough to rebuild, demanding best practices at every stage of design 134. High-resolution surfaces, complex lofts, and intricate patterns multiply processing requirements 22.

Multi-Disciplinary Integration: Incorporating multiple systems like mechanical components, custom parts, Toolbox parts, library parts, weldments, routed systems, and components from vendors or subcontractors 135. Each system brings its own computational overhead and compatibility challenges 18.

Filtering a SolidWorks Featuremanager Tree by Custom Propertiessolidworks

The Performance Nightmare: When Assemblies Fight Back

One of the most soul-crushing aspects of working with large assemblies is the performance degradation that creeps in like a slow poison 58. I’ve witnessed seasoned engineers literally walk away from their workstations during rebuild operations, grabbing coffee and checking email while their assemblies grudgingly update 7. The performance issues manifest in several painful ways that can destroy productivity 22:

The Waiting Game

Extended Load Times: Opening files becomes an exercise in patience, with load times stretching from seconds to minutes, or in extreme cases, tens of minutes 2313. Modern assemblies can require 8-15 minutes just to become interactive.

Rebuild Purgatory: Changes that should take seconds to process instead trigger extensive rebuild cycles that can last 10-30 minutes 119. During these rebuilds, the software becomes unresponsive, essentially holding your workstation hostage 5.

Drawing Creation Delays: Creating technical drawings becomes a test of endurance, with view generation taking several minutes per view 78. Detail views and section cuts can extend this even further 1.

Navigation Lag: Simple operations like rotating, panning, or zooming become sluggish and unresponsive 122. The lag between mouse input and screen response can reach several seconds, making precise work nearly impossible 5.

Component Insertion Bottlenecks: Adding new components to the assembly becomes painfully slow 18. The software struggles to calculate mate previews and placement options 26.

Application Switching Penalties: Moving between parts, assemblies, and drawings incurs significant time penalties 17. Each context switch requires memory reallocation and graphics updates 22.

Mating Process Marathons: Creating assembly relationships becomes time-consuming as the mate solver struggles with complex constraint networks 261. What should be quick operations stretch into multi-minute processes 29.

SolidWorks performance evaluation tool showing assembly performance metricssolidworks

The 80/20 Rule of CAD Performance

Here’s a sobering reality that many users don’t realize: SolidWorks itself only controls about 20% of the performance factors, such as bugs, algorithms, and code efficiency 18. The remaining 80% is entirely in your hands – how you set up your software, manage your data, plan your designs, and model your parts and assemblies 225. This means that blaming the software or demanding faster hardware, while sometimes justified, often misses the real culprit: suboptimal modeling practices 718.

Think of it like driving a race car – you can have the most powerful engine in the world, but if you don’t know how to take corners efficiently or when to shift gears, you’ll lose to someone with a less powerful car but superior technique 822. The same principle applies to CAD work: technique trumps raw computing power every time 5.

The Root Causes: Why Assemblies Slow Down

Assembly performance degradation rarely happens overnight 58. Instead, it’s typically the result of many small issues accumulating over time, like digital sediment building up in your model 118. Understanding these root causes is crucial because there’s no magic bullet – no single setting change or hardware upgrade that will instantly solve deep-seated modeling problems 227.

Modeling Practice Multipliers

Poor modeling practices create performance multipliers that compound exponentially 58. Consider circular references, where two or more components share external references in a way that creates endless rebuild loops 3336. Component A depends on Component B, which depends on Component C, which depends back on Component A – creating a mathematical impossibility that forces SolidWorks to iterate endlessly trying to solve the unsolvable 33.

Similarly, excessive mate chains create computational bottlenecks 261. When Component Z’s position depends on a chain of 15 intermediate components, any change at the beginning of the chain triggers a cascade of recalculations 226. Professional assembly designers know to mate components directly to fixed references whenever possible, avoiding these dependency chains 26.

The Memory Management Challenge

Modern large assemblies can easily consume 32-64 GB of RAM, and poorly optimized models can demand even more 1316. When your system runs out of physical memory, Windows begins using virtual memory on your hard drive, which is orders of magnitude slower than RAM 1327. This creates a cascade effect where even minor operations trigger extensive disk access, grinding performance to a halt 16.

Accessing Large Design Review Mode In SolidWorkssolidworks

Professional Strategies: Taming the Assembly Beast

Professional CAD users who routinely work with large assemblies have developed sophisticated strategies that go far beyond basic software settings 78. These battle-tested approaches form a comprehensive methodology that addresses every aspect of large assembly management 225.

Part-Level Optimization: Building the Foundation

Strategic Origin Placement: Every professional assembly starts with parts that have logically placed origins 131. This isn’t just about convenience – it’s about computational efficiency 26. When parts are properly oriented relative to their origins, assembly placement calculations become dramatically faster 31.

Feature Efficiency: The choice of features and sketching techniques has profound performance implications 534. Complex lofts and sweeps require significantly more computational resources than simple extrusions 22. Professional modelers choose the simplest feature that achieves the required geometry 5.

Configuration Management: Limiting configurations to 2-3 per component isn’t arbitrary – it’s based on memory management principles 321. Each configuration multiplies the data stored in memory, and excessive configurations can overwhelm system resources 3218.

Cosmetic Feature Elimination: Removing threads, embossed text, small fillets, and other cosmetic details can reduce triangle count by 50-80% 185. These features add visual complexity without contributing to fit and function 22.

Assembly-Level Architecture

Hierarchical Subassembly Structure: Professional assemblies never exceed 15-20 components at the top level 218. Everything else gets organized into logical subassemblies that can be managed independently 7. This creates a pyramid structure where computational load is distributed across multiple levels 8.

Mate Strategy Optimization: Experienced users avoid distance and angle mates whenever possible, favoring coincident and concentric mates that solve faster 262. They also eliminate mate loops that create redundant constraints 26.

Reference Geometry Utilization: Layout sketches and construction planes serve as stable reference points that reduce dependency chains 3336. Professional assemblies often include comprehensive reference geometry that provides geometric stability 26.

Accessing the assembly visualization tool in SolidWorksengineersrule

Advanced Memory Management Techniques

SolidWorks provides several sophisticated tools for managing memory usage, but knowing when and how to use them separates professionals from casual users 78.

The Assembly Mode Hierarchy

Resolved Mode: Loads complete geometric and parametric data for all components 38. Use this only when full editing capability is required 18. Modern systems can handle 200-500 components in resolved mode before performance degrades significantly 1.

Lightweight Mode: Loads only graphics triangles and essential mate data, improving open times by 200-300% 38. This mode supports most assembly operations while using half the memory of resolved mode 718.

Large Assembly Mode: Automatically activates performance optimizations when component count exceeds user-defined thresholds 18. This mode disables computationally expensive features like dynamic highlighting and anti-aliasing 22.

Large Design Review (LDR): Loads only display graphics, enabling instant access to very large assemblies 1215. LDR mode can open 50,000+ component assemblies in under 30 seconds 12. Recent versions allow basic editing operations without fully resolving components 15.

SpeedPak Technology: Creates simplified representations containing only essential geometry for mating and interference detection 91114. SpeedPak configurations can reduce memory usage by 90% while maintaining assembly relationships 11.

SolidWorks Large Assembly Quick Reference Guide

🚀 Performance Optimization Checklist

Essential Settings

•  Enable Large Assembly Mode (Tools > Large Assembly Settings)
•  Set component threshold to 100-500 components
•  Turn off anti-aliasing (System Options > Display)
•  Disable dynamic highlight (System Options > Display)
•  Set background to plain color
•  Enable Enhanced Graphics Performance

Memory Management

•  Increase virtual memory to 2x RAM size
•  Use Lightweight mode for components
•  Enable “Automatically optimize resolved mode”
•  Set curvature generation to “Only on demand”

🛠️ Modeling Best Practices

Part Level

•  Model with logical origin points
•  Use simplified configurations for large assemblies
•  Remove cosmetic features (threads, text, small fillets)
•  Avoid overly complex sketches
•  Limit configurations to 2-3 per component

Assembly Level

•  Organize into logical subassemblies
•  Mate components to fixed references
•  Avoid long chains of mates
•  Use concurrent mates instead of distance/angle mates
•  Eliminate circular references
•  Keep top-level assembly simple (< 20 direct components)

📊 Assembly Modes Quick Guide

🔧 Troubleshooting Common Issues

Slow Performance

1. Check Performance Evaluation tool
2. Identify high triangle count components
3. Create simplified configurations
4. Use SpeedPak

Strategic SpeedPak Implementation

SpeedPak technology represents one of the most powerful tools for large assembly management 91114. Professional users create SpeedPak configurations for purchased parts, complex subassemblies, and any component that doesn’t require frequent modification 1114. The key is selecting the minimal geometry required for assembly function – typically external faces, mounting holes, and critical reference points 9.

Creating effective SpeedPak configurations requires understanding your assembly’s geometric requirements 1114. Include mounting faces for mates, clearance envelopes for interference detection, and any surfaces required for drawing views 9. Exclude internal components, cosmetic features, and detailed geometry that doesn’t affect assembly function 11.

Virtual Memory Optimization

Professional workstations require careful virtual memory configuration to handle large assemblies effectively 131627. The traditional rule of setting virtual memory to 2x physical RAM becomes critical when working with assemblies that exceed system memory 13. However, SSD placement considerations have evolved with modern storage technology 1627.

While SSDs provide dramatically faster virtual memory performance than traditional hard drives, they also have limited write endurance 1627. Professional installations often use dedicated high-speed SSDs for virtual memory, separate from the primary system drive 13. This provides optimal performance while preserving the lifespan of the primary storage 16.

Performance Impact of Different SolidWorks Large Assembly Optimization Techniques

Hardware Architecture for Large Assemblies

Professional large assembly work demands purpose-built hardware configurations that go beyond standard workstation specifications 2023. The relationship between assembly size and hardware requirements follows predictable patterns that can guide system design decisions.

Processor Considerations

Large assembly performance depends heavily on single-threaded processor speed rather than core count 202223. While SolidWorks can utilize multiple cores for certain operations like rendering and simulation, core assembly operations remain single-threaded 22. This means a 4.0 GHz quad-core processor will significantly outperform a 2.5 GHz 16-core processor for assembly work 2023.

Professional systems target 3.7-4.2 GHz base clock speeds with Intel Xeon or high-end Core processors 2023. The increased cache sizes in workstation processors provide measurable benefits when working with complex assemblies 23.

Memory Architecture

Large assembly memory requirements scale exponentially rather than linearly 132023. A 1,000 component assembly might require 32 GB of RAM, while a 5,000 component assembly could demand 128 GB or more. Professional systems include substantial memory overhead to accommodate multiple open assemblies, drawings, and analysis applications 20.

Memory speed also becomes critical with large assemblies 2223. DDR4-3200 or faster memory provides measurable performance improvements over standard DDR4-2400 20. ECC memory adds reliability for mission-critical work where assembly corruption could cost days of work 23.

Graphics Hardware Strategy

Large assembly graphics performance requires professional-grade GPUs with certified drivers 202223. Consumer gaming cards, while powerful, lack the driver optimization and stability required for professional CAD work 22. NVIDIA Quadro and AMD Radeon Pro cards provide certified drivers that are extensively tested with SolidWorks 2023.

Professional installations require 8-16 GB of graphics memory for large assemblies 2023. Complex assemblies can easily exceed 4 GB of graphics memory, causing constant data transfers that destroy performance 22.

Advanced Troubleshooting and Diagnostics

When large assemblies develop performance problems, systematic diagnosis becomes essential 1924. Professional users rely on SolidWorks’ built-in diagnostic tools combined with external monitoring to identify bottlenecks 228.

Performance Evaluation Analysis

The Performance Evaluation tool provides detailed insights into assembly bottlenecks 195. Professional users run Performance Evaluation regularly, tracking metrics like graphics triangle count, rebuild times, and component load times 19. This data guides optimization efforts by identifying the most problematic components 5.

Components with triangle counts exceeding 100,000 typically require optimization through SpeedPak or simplified configurations 1819. Rebuild times exceeding 30 seconds per component indicate feature optimization opportunities 5.

Assembly Visualization Techniques

Assembly Visualization provides powerful tools for identifying performance bottlenecks 518. Professional users sort components by graphics triangles, file size, and rebuild time to identify optimization targets 5. Color-coding helps visualize the distribution of computational load across the assembly 18.

The tool’s performance analysis tab reveals hidden issues like excessive material assignments, complex appearances, and oversized imported files 518. These insights guide targeted optimization efforts that provide maximum performance improvement 19.

Error Prevention and Recovery Strategies

Large assembly work inevitably involves dealing with corruption, mate errors, and file management challenges 2430. Professional users develop comprehensive strategies for preventing and recovering from these issues 2425.

Mate Error Management

Assembly mate errors typically stem from geometric changes that invalidate existing relationships 2630. Professional users implement mate schemes that minimize dependency chains and avoid over-constraining 26. When mate errors occur, systematic diagnosis using the View Mates tool identifies problematic relationships 26.

Circular reference errors require careful analysis to identify the dependency loop 3336. Professional users often temporarily suppress external references to isolate the problematic components 33. Breaking circular references usually requires editing in-context features or eliminating unnecessary external relationships 36.

File Corruption Recovery

Large assemblies are particularly susceptible to file corruption due to their complexity and file interdependencies 24. Professional installations include automated backup systems that preserve multiple file versions 24. When corruption occurs, SolidWorks 2017+ includes automatic repair functions that can recover most files 24.

The Advanced Configuration method provides powerful tools for diagnosing corrupted components within assemblies 24. This technique allows systematic isolation of problematic files without losing the entire assembly 24.

Collaboration and Data Management

Large assembly projects require sophisticated data management strategies that go beyond individual user practices 7835. Professional teams implement comprehensive systems for version control, access management, and collaborative editing 35.

PDM Integration Strategies

Professional Data Management (PDM) systems become essential for large assembly projects 35. These systems manage file relationships, prevent conflicts, and maintain version control across complex assemblies 35. Proper PDM implementation can reduce file management overhead by 60-80% while improving collaboration efficiency 7.

Configuration management becomes particularly critical in PDM environments 35. Professional teams establish standardized configuration naming conventions and limit configuration proliferation to maintain system performance 3235.

Team Workflow Optimization

Large assembly collaboration requires careful coordination to prevent conflicts and maintain productivity 78. Professional teams establish clear protocols for file check-out, assembly modification, and design reviews 35. These protocols prevent the performance degradation that occurs when multiple users attempt simultaneous modifications 8.

Conclusion: Mastering the Art of Large Assembly Management

Large assemblies don’t have to be productivity killers 18. With the right combination of modeling practices, hardware configuration, and strategic tool usage, even the most complex projects become manageable 227. The key insight is that large assembly performance is fundamentally about system architecture – both in your CAD models and your computing infrastructure 58.

Professional large assembly management requires a holistic approach that addresses modeling practices, hardware optimization, software configuration, and team collaboration 2278. The 80/20 rule remains paramount: your modeling decisions have far more impact on performance than raw computing power 122.

Remember that every large assembly started as a small one 1. Implementing proper practices from the beginning prevents the accumulation of performance issues that plague many large projects 58. Whether you’re working on automotive systems with 15,000 components or aerospace assemblies with 50,000 parts, these principles scale to meet the challenge 1721.

The tools and techniques outlined in this guide represent decades of collective professional experience 7822. They’ve been battle-tested in real-world projects where deadlines are non-negotiable and performance problems can cost millions of dollars 5. Master these approaches, and you’ll find that large assemblies become an exciting challenge rather than a dreaded obstacle 18.

For those ready to dive deeper into large assembly optimization, the comprehensive quick reference guide provides immediate access to the essential techniques and troubleshooting procedures that professionals rely on daily. Combined with proper hardware specifications and systematic application of these principles, you’ll have everything needed to tame even the most complex CAD projects 2223.
